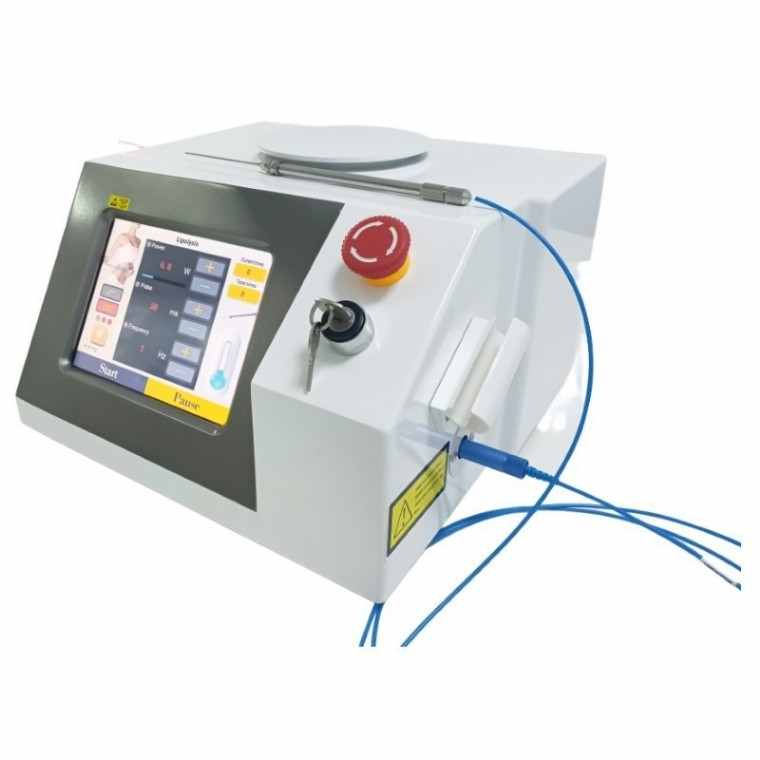

980nm 1470nm Diode Laser Machine for Vascular Treatment

The BRS-LLS980LY2 is a 6-in-1 diode laser machine that combines 980nm and 1470nm wavelengths in one fiber-coupled unit. It covers vascular work, endovenous laser treatment, skin rejuvenation and nail therapy on a single platform.

How It Works

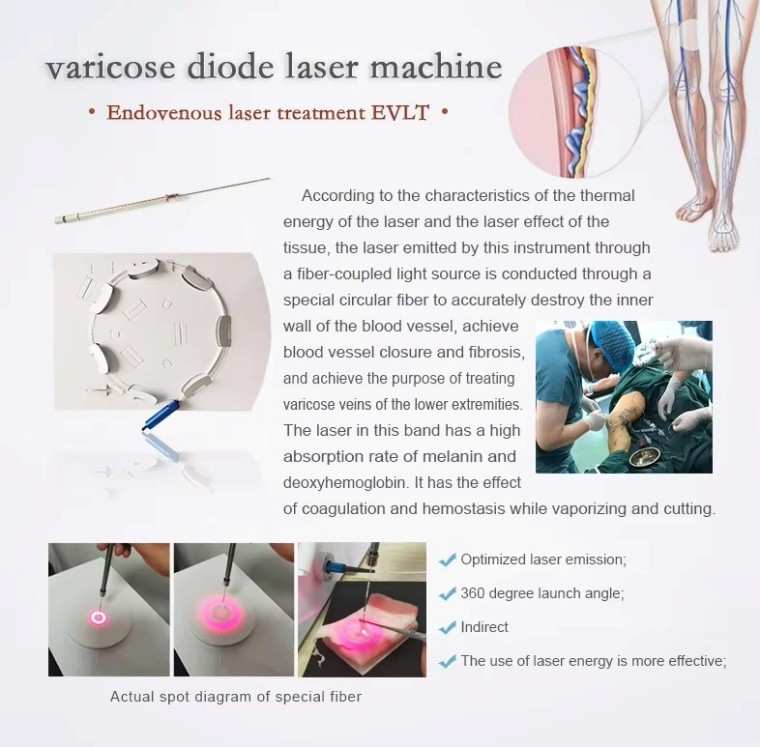

Two wavelengths do different jobs. The 980nm beam is absorbed by deoxygenated haemoglobin, which coagulates small vessels and stops bleeding as the fiber advances. The 1470nm beam is strongly absorbed by water, so it delivers controlled thermal energy to a shallow depth for ablation and collagen heating. In endovenous laser treatment, the radial fiber inside the vein heats the vessel wall from the inside, which makes it contract and close. The same energy profile is used to treat nail fungus and to stimulate collagen in skin rejuvenation programmes.

Key Features

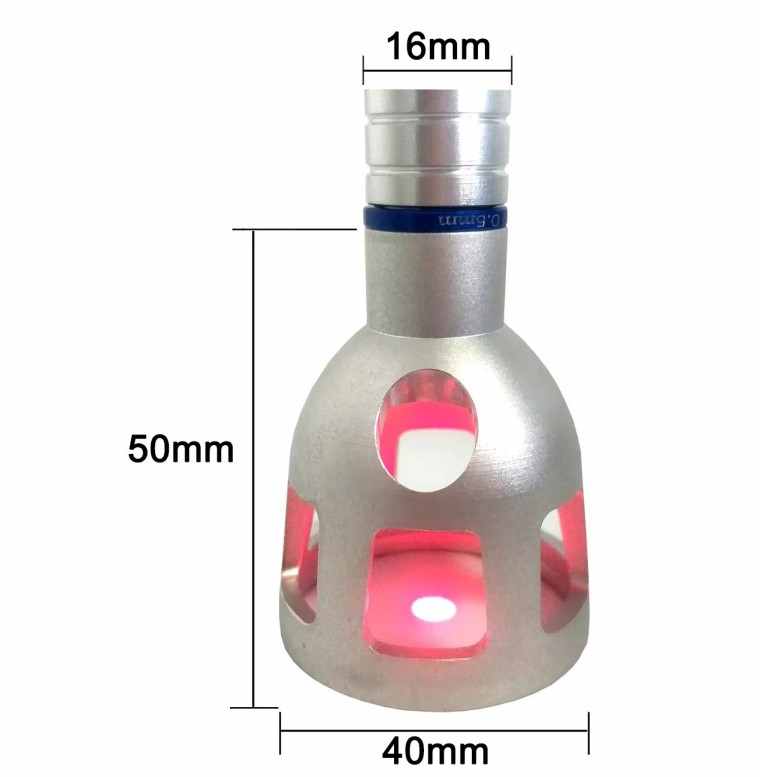

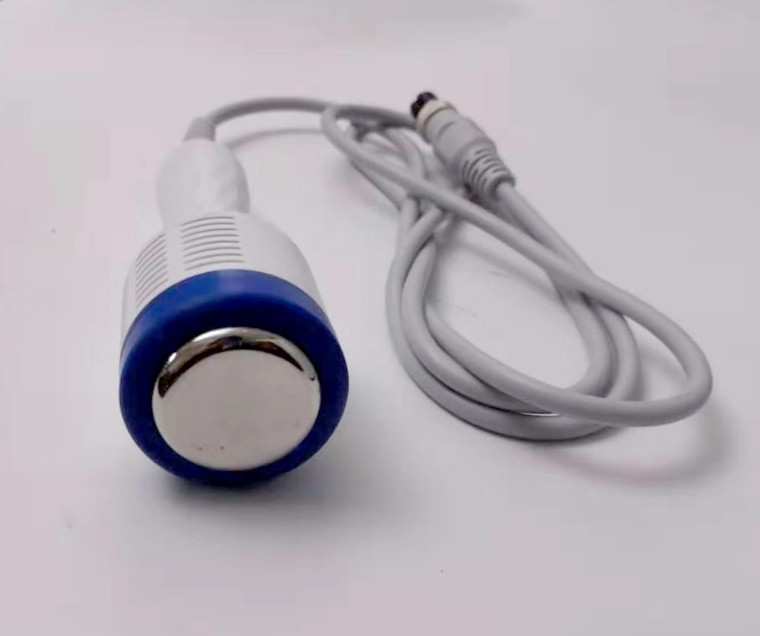

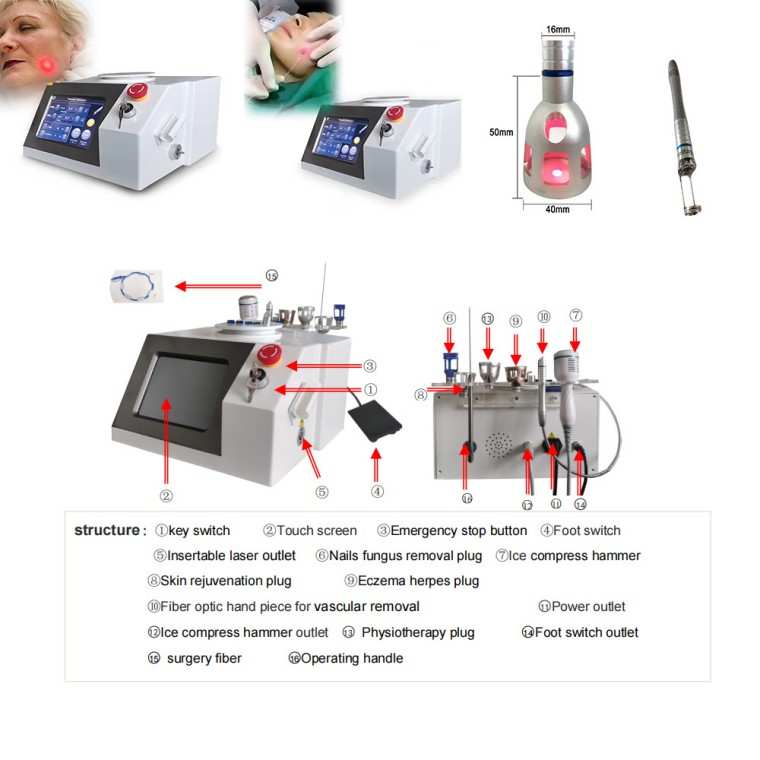

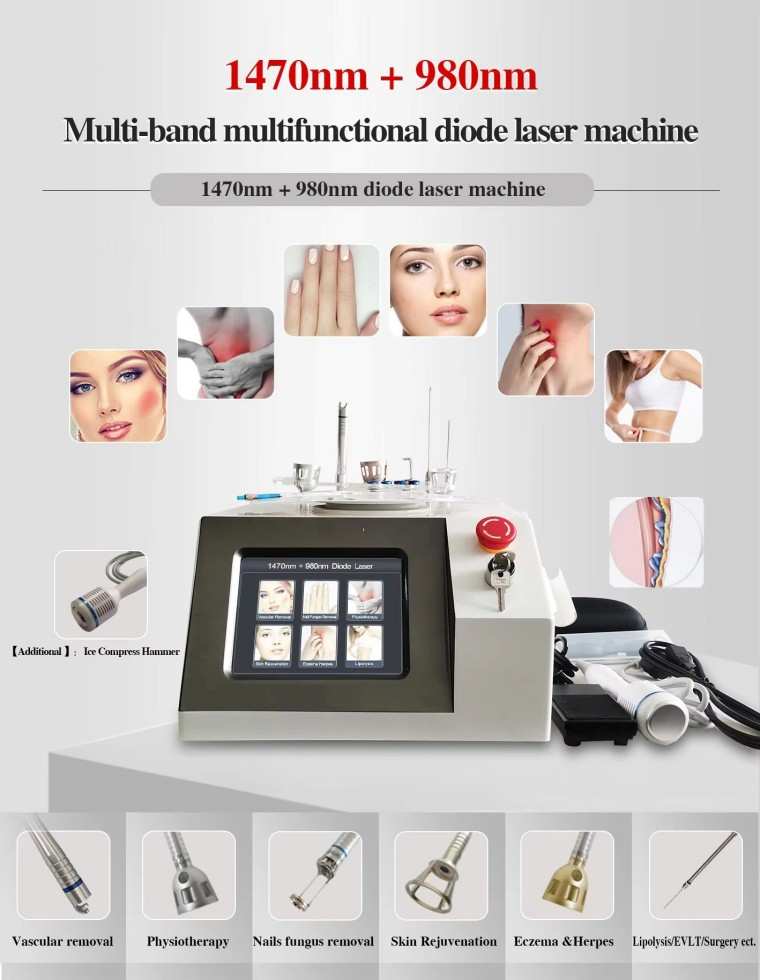

• 6-in-1 platform covering vascular clearance, physiotherapy, nail fungus, skin rejuvenation, eczema and herpes, and lipo and surgical work
• Dual wavelengths, 980nm and 1470nm, with 23W combined output

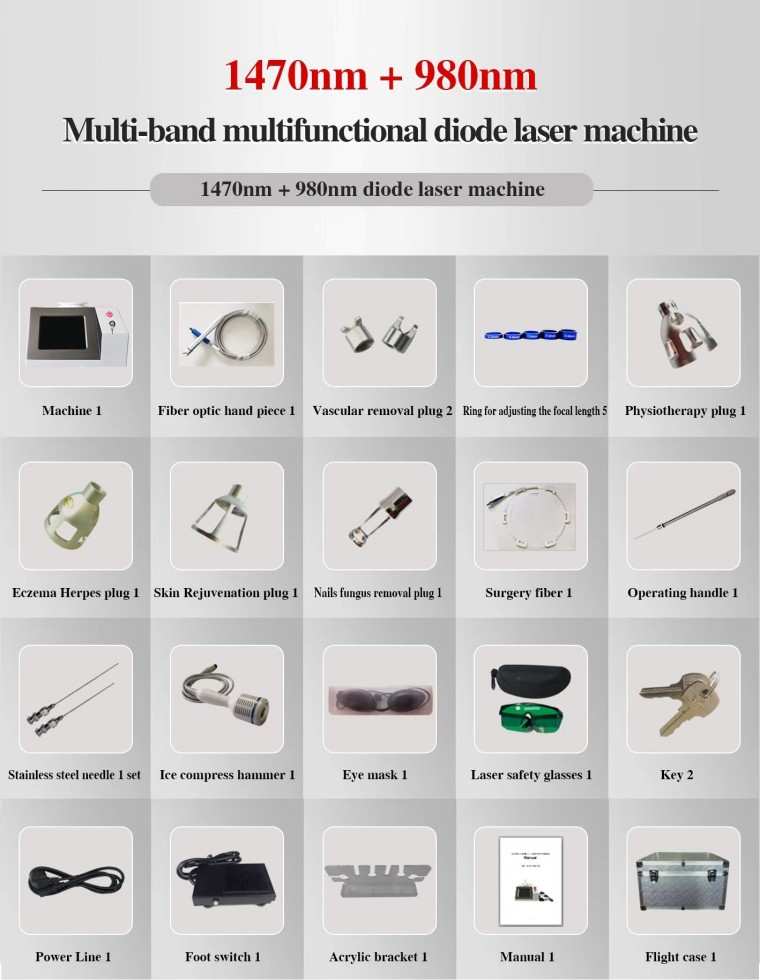

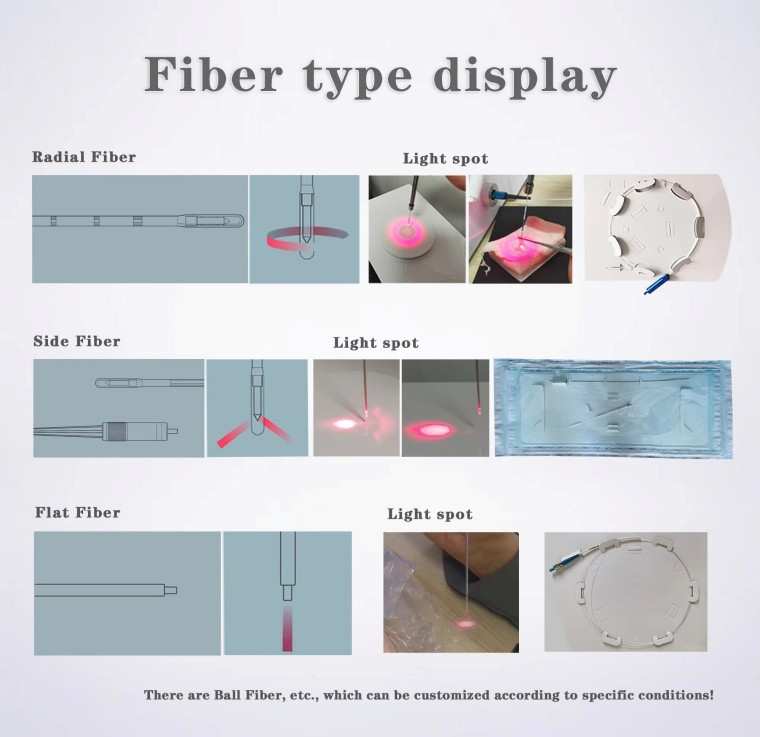

• Three interchangeable fiber types - radial, side and flat - with a custom ball-tip option
• Aiming beam at 650nm and pulse width from 15-100ms
• 8-inch touchscreen with English interface and OEM language support

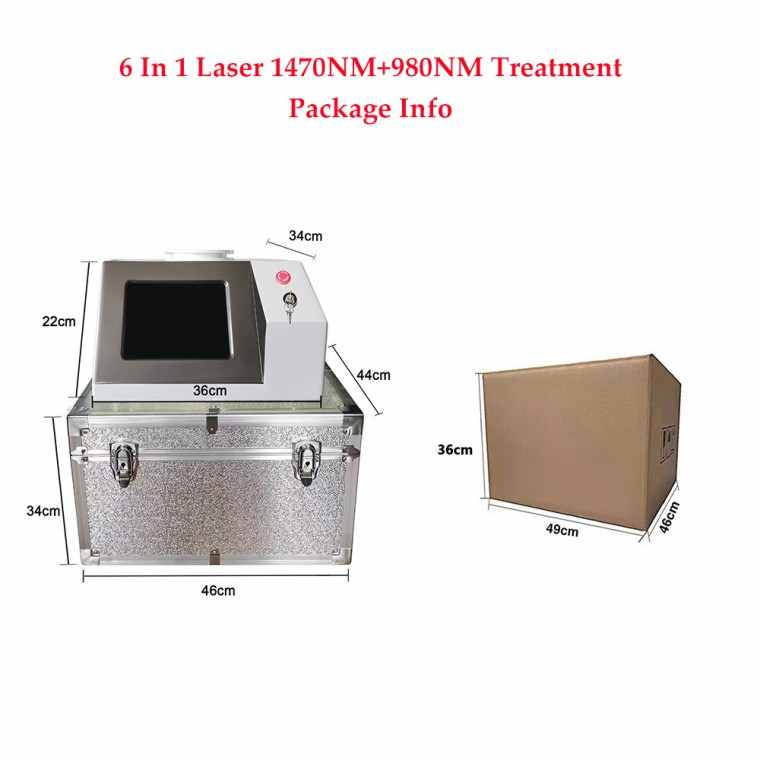

• Portable 5kg main unit with a flight case for mobile and clinic use

Treatment Results

• Closure of varicose veins and vascular lesions with EVLT
• Reduced redness and visible small blood vessels on the face and legs
• Improved skin tone from collagen stimulation

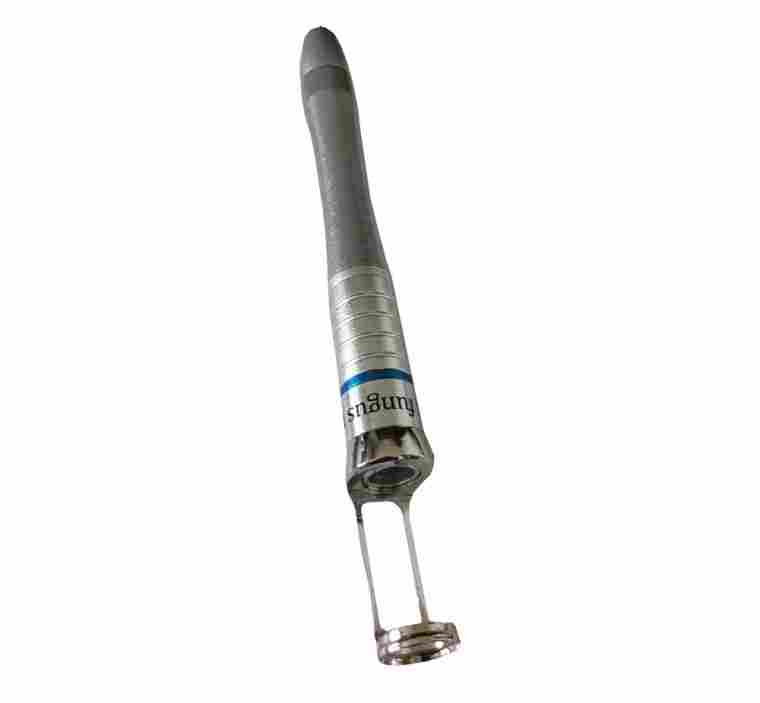

• Clearing of nail fungus with the dedicated probe
• Support for lipo and minor surgical procedures

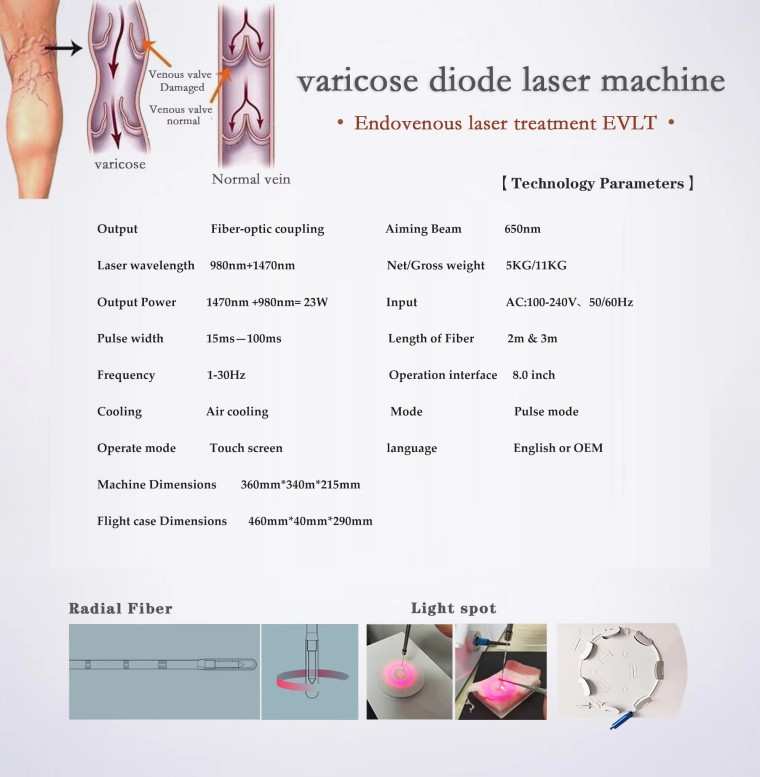

Specifications

• Model: BRS-LLS980LY2
• Technology: fiber-coupled diode laser
• Wavelength: 980nm and 1470nm
• Output power: 23W combined
• Fibers: radial, side and flat (custom ball option)
• Aiming beam: 650nm
• Pulse width: 15-100ms; frequency 1-30Hz
• Screen: 8-inch touchscreen
• Cooling: air
• Machine size: 360 x 340 x 215 mm; net weight 5 kg, gross 11 kg
• Voltage: AC100-240V, 50/60Hz

Order the BRS-LLS980LY2 factory-direct from INWAAN: OEM/ODM available, MOQ 1 set, 7-day lead time, worldwide shipping and a 3-year warranty.
