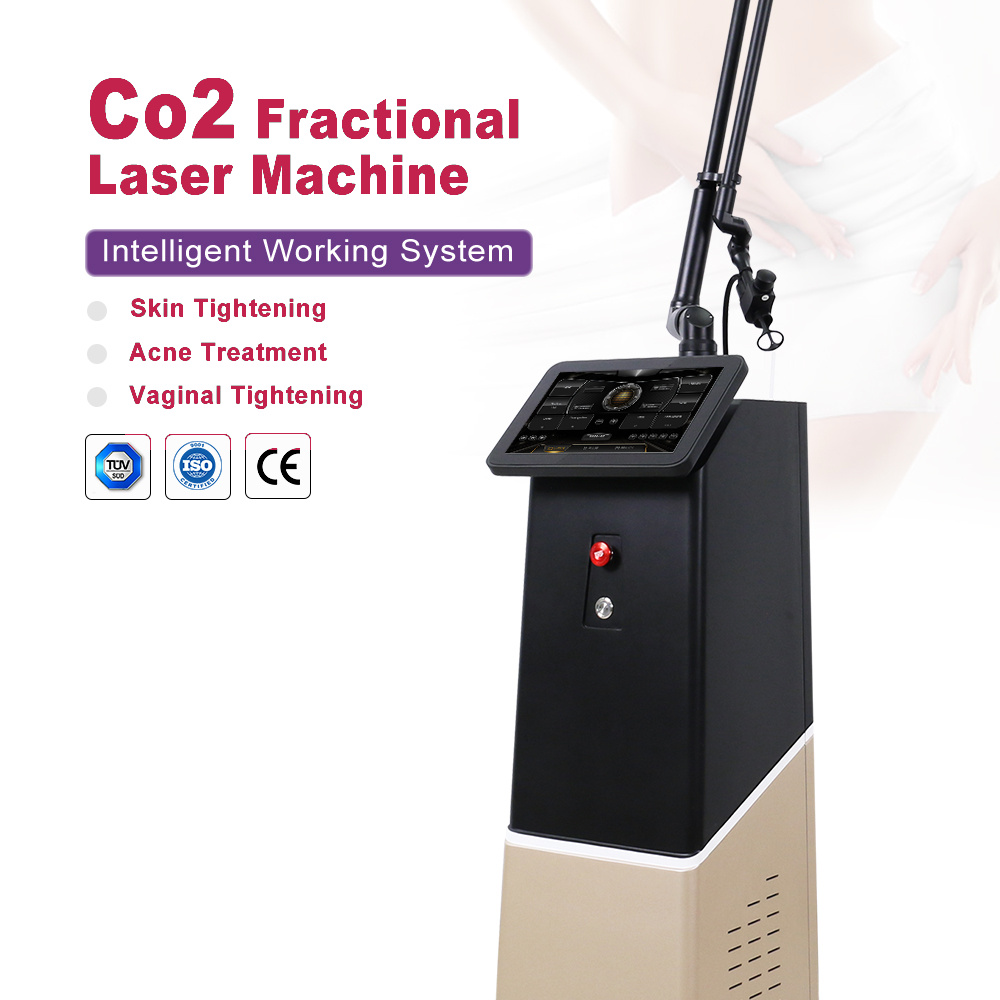

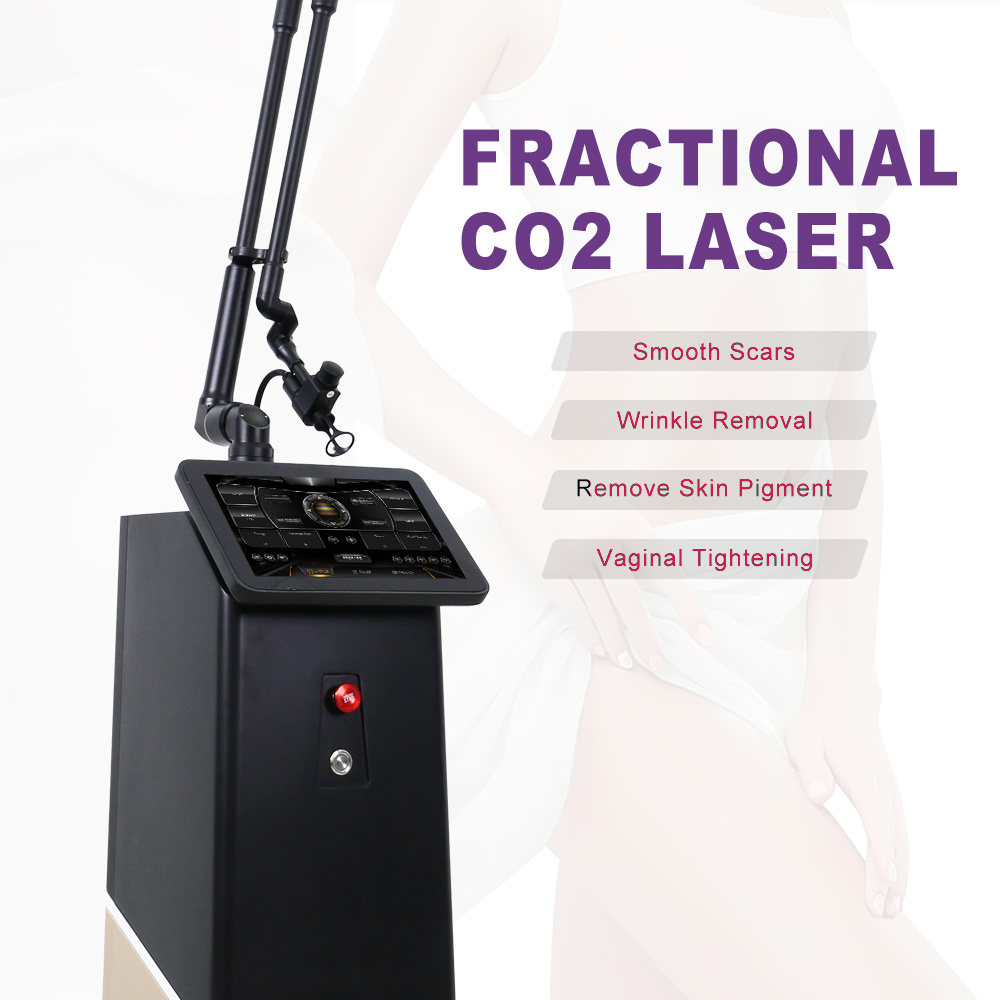

Fractional CO2 Laser Machine 60W for Skin Resurfacing

The HSR-CO2X2S is a fractional CO2 laser machine built for skin resurfacing, scar revision and intimate treatments. Its 10600nm tube targets water in the tissue, and the 7-joint articulated arm lets the operator reach the face, neck and body without moving the client.

How It Works

The CO2 laser emits at 10.6 microns, which is strongly absorbed by water in the skin. The fractional handpiece breaks the beam into a grid of micro-beams, so it removes narrow columns of tissue while leaving the surrounding skin intact. That controlled injury triggers the heat shock response - HSP70 production, fibroblast activation and collagen remodelling - which is what improves texture, scars and fine lines over the following months. The cutting handpiece uses the same beam in continuous mode for precise ablation, and a dedicated probe with three micro-beam densities handles vaginal tightening.

Key Features

• 10600nm CO2 laser with 60W output and a gold-plated 360° reflective handpiece
• 7-joint articulated arm for full-range access

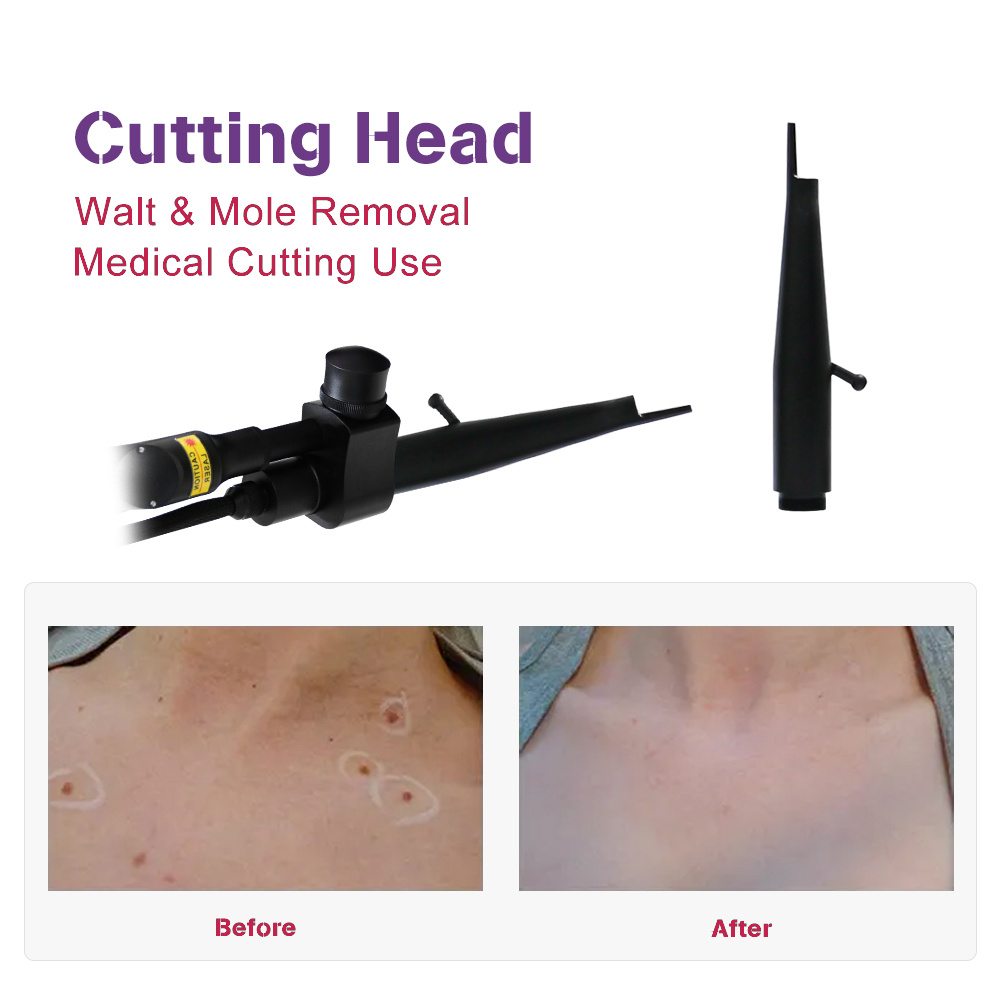

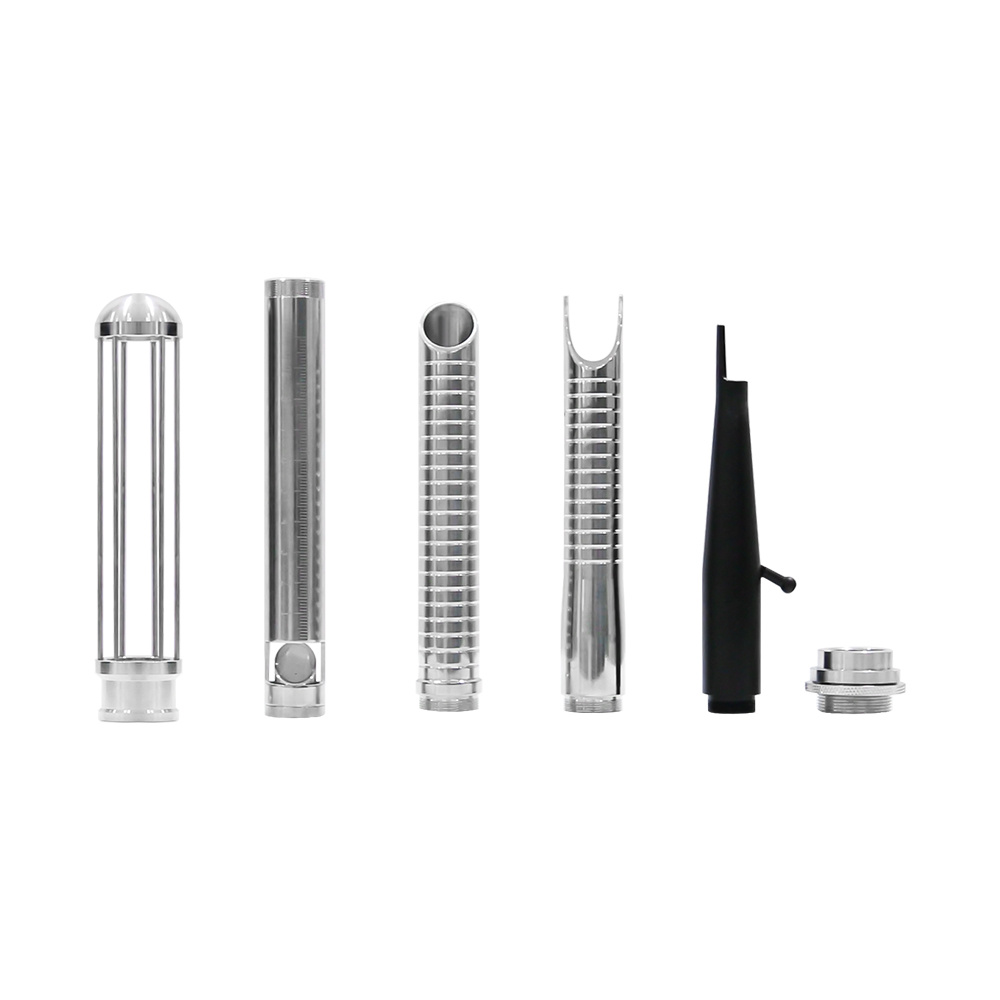

• Three handpieces: fractional scanning, cutting and a vaginal tightening probe
• Three selectable micro-beam spot densities
• Scan area up to 20 x 20 mm with scan speed above 10 m/s
• Water and air cooling with aiming beam at 635nm

Treatment Results

• Smoother skin texture and reduced fine lines on the face and neck
• Visible improvement in acne scars and surgical scars
• Reduced pigmentation and more even skin tone
• Skin tightening and vaginal rejuvenation with the dedicated probe
• Precise removal of warts and skin tags with the cutting handpiece

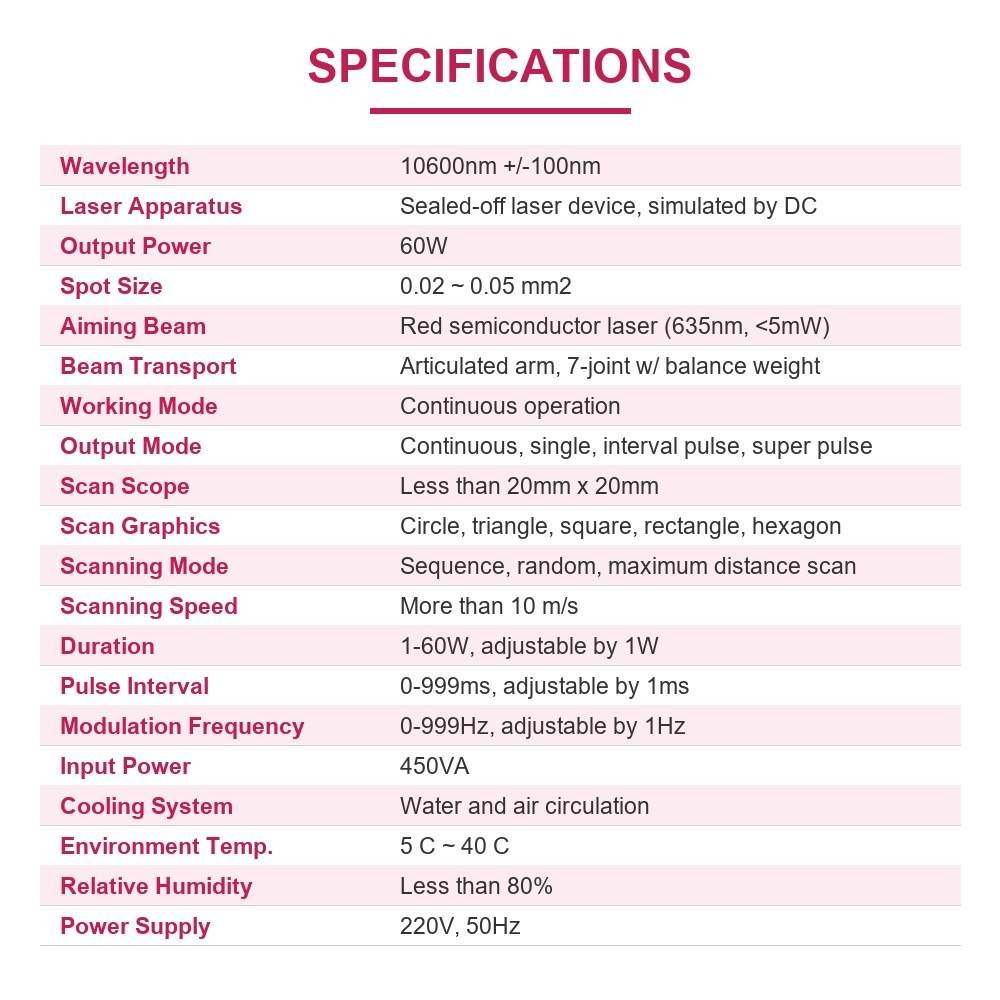

Specifications

• Model: HSR-CO2X2S
• Technology: fractional CO2 laser
• Wavelength: 10600nm ±100nm
• Output power: 60W
• Fractional energy: up to 80mJ
• Spot size: 0.02-0.05 mm²
• Aiming beam: 635nm, below 5mW
• Scan area: below 20 x 20 mm; scan speed above 10 m/s
• Pulse duration: 1-60W; interval 0-999ms; modulation 0-999Hz
• Cooling: water and air
• Voltage: 220V 50Hz, input 450VA
• Certification: CE, ISO 13485

Available factory-direct from INWAAN, the HSR-CO2X2S ships with OEM/ODM service, MOQ 1 set, 7-day lead time, a 3-year warranty and worldwide delivery.
